Cisco Catalyst Err-disabled Port State, Enable & Disable Autorecovery Feature

Article Reads:385753

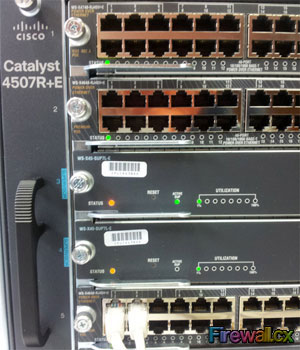

cisco-switches-4507re-ws-x45-sup7l-e-20Errdisable is a feature that automatically disables a port on a Cisco Catalyst switch. When a port is error disabled, it is effectively shut down and no traffic is sent or received on that port.

The error disabled  feature is supported on most Catalyst switches running the Cisco IOS software. Including all the following models:

  • Catalyst 2940 / 2950 / 2960 / 2960S
  • Catalyst 3550 / 3560 / 3560-E / 3750 / 3750-E
  • Catalyst 4000 / 4500 / 4507R
  • Catalyst 6000 / 6500

 The Errdisable error disable feature was designed to inform the administrator when there is a port problem or error.  The reasons a catalyst switch can go into Errdisable mode and shutdown a port are many and include:

  • Duplex Mismatch
  • Loopback Error
  • Link Flapping (up/down)
  • Port Security Violation
  • Unicast Flodding
  • UDLD Failure
  • Broadcast Storms
  • BPDU Guard

When a port is in error-disabled state, it is effectively shut down and no traffic is sent or received on that port. The port LED is set to the orange color and, when you issue the show interfaces command, the port status shows as Errdisabled.

Following is an example of what an error-disabled port looks like:

2960G# show interface gigabit0/7
GigabitEthernet0/7 is down, line protocol is down (err-disabled)
  Hardware is Gigabit Ethernet, address is 001b.54aa.c107 (bia 001b.54aa.c107)
  MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,
     reliability 234/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Auto-duplex, Auto-speed, media type is 10/100/1000BaseTX
  input flow-control is off, output flow-control is unsupported
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 18w5d, output 18w5d, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0
  Queueing strategy: fifo
  Output queue: 0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     1011 packets input, 862666 bytes, 0 no buffer
     Received 157 broadcasts (0 multicast)
     0 runts, 0 giants, 0 throttles
     3021 input errors, 2 CRC, 0 frame, 0 overrun, 0 ignored
     0 watchdog, 144 multicast, 0 pause input
     0 input packets with dribble condition detected
     402154 packets output, 86290866 bytes, 0 underruns
     0 output errors, 0 collisions, 1 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier, 0 PAUSE output
     0 output buffer failures, 0 output buffers swapped out

To recover a port that is in an Errdisable state, manual intervention is required, and the administrator must access the switch and configure the specific port with 'shutdown' followed by the 'no shutdown' command. This command sequence will enable the port again, however, if the problem persists expect to find the port in Errdisable state again soon.

Understanding And Configuring Errdisable AutoRecovery

As outlined above, there are a number of reasons a port can enter the Errdisable state.  One common reason is the Port Security error, also used in our example below.

Of all the errors, Port Security is more a feature rather than an error. Port Security allows the restriction of MAC Addresses on an interface configured as a layer 2 port. This effectively prevents others connecting unwanted hubs or switches on the network. Port Security allows us to specify a single MAC Address to be connected to a specific port, thus restricting access to a specific computer.

In the case of a violation, Port Security will automatically disable the port. This is the behaviour of the default port security policy when enabling Port Security. Following is a configuration example of port security:

2960G(config)# interface GigabitEthernet0/48
2960G(config-if)# switchport access vlan 2
2960G(config-if)# switchport mode access
2960G(config-if)# switchport port-security
2960G(config-if)# spanning-tree portfast

Once a host is connected to the port, we can get more information on its port-security status and actions that will be taken when a violation occurs:

2960G# show port-security interface GigabitEthernet 0/48
Port Security         : Enabled
Port Status           : Secure-up
Violation Mode        : Shutdown
Aging Time            : 0 mins
Aging Type            : Absolute
SecureStatic Address Aging : Disabled
Maximum MAC Addresses   : 1
Total MAC Addresses     : 1
Configured MAC Addresses: 0
Sticky MAC Addresses    : 0
Last Source Address:Vlan: 001b.54aa.c107
Security Violation Count: 0

Note that the Violation Mode is set to Shutdown. This means that when a violation is detected, the switch will place gigabitethernet 0/48 in the err-disable shutdown state as shown below:

%PORT_SECURITY-2-PSECURE_VIOLATION: Security violation occurred, caused by MAC address 0031.f6ac.03f5 on port GigabitEthernet0/48

While it's almost always necessary to know when a port security violation occurs there are some circumstances where autorecovery is a desirable feature, especially durng accidental violations.

The following commands enable the autorecovery feature 30 seconds after a port security violation:

2960G(config)# errdisable recovery cause psecure-violation
2960G(config)# errdisable recovery interval 30

Determine The Reason For The Errdisabled State

To view the Errdisabled reasons, and see for which reason the autorecovery feature has been enabled, use the show Errdisable recovery command:

2960G# show errdisable recovery
ErrDisable Reason  Timer Status
-----------------  --------------
udld                Disabled
bpduguard           Disabled
security-violatio   Disabled
channel-misconfig   Disabled
vmps                Disabled
pagp-flap           Disabled
dtp-flap            Disabled
link-flap           Disabled
secure-violation    Enabled
sfp-config-mismat   Disabled
gbic-invalid        Disabled
dhcp-rate-limit     Disabled
unicast-flood       Disabled
storm-control       Disabled
loopback            Disabled
Timer interval: 30 seconds
Interfaces that will be enabled at the next timeout.

We have now confirmed that autorecovery is enabled for port-security violations. If it is required to enable the Errdisable autorecovery feature for all supported reasons, use the following command:

2960G(config)# errdisable recovery cause all

To test our configuration we forced a port security violation, causing the switch to place the offending port in the shutdown state. Notice we've enabled autorecovery for all Errdisable reasons and the time left to enable the interfaces placed in shutdown state by the port security violation:

2960G# show errdisable recovery
ErrDisable Reason  Timer Status
-----------------  --------------
udld                Enabled
bpduguard           Enabled
security-violatio   Enabled
channel-misconfig   Enabled
vmps                Enabled
pagp-flap           Enabled
dtp-flap            Enabled
link-flap           Enabled
psecure-violation   Enabled
sfp-config-mismat   Enabled
gbic-invalid        Enabled
dhcp-rate-limit     Enabled
unicast-flood       Enabled
storm-control       Enabled
loopback            Enabled

Timer interval: 30 seconds

Interfaces that will be enabled at the next timeout:

Interface  Errdisable reason   Time left(sec)
---------  -----------------  --------------
Gi0/48    security-violation        17

Seventeen seconds later, the switch automatically recovered from the port security violation and re-enabled the interface:

%PM-4-ERR_RECOVER: Attempting to recover from secure-violation err-disable state on gigabitethernet0/48
18w4d: %LINK-3-UPDOWN: Interface GigabitEthernet0/48, changed state to up
18w4d: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/48, changed state to up

Disabling The Errdisable Feature

There are cases where it might be necessary to disable the Errdisable mechanism for specific supported features in order to overcome constant interface shutdowns and auto recoveries.  While the Catalyst IOS does not allow disabling all features we can still fine-tune the mechanism and selectively disable a few.

To view the Errdisable reasons monitored by the switch, use the show Errdisable detect command:

2960G# show errdisable detect

ErrDisable Reason      Detection    Mode
-----------------      ---------    ----
bpduguard               Enabled      port
channel-misconfig       Enabled      port
community-limit         Enabled      port
dhcp-rate-limit         Enabled      port
dtp-flap                Enabled      port
gbic-invalid            Enabled      port
inline-power            Enabled      port
invalid-policy          Enabled      port
link-flap               Enabled      port
loopback                Enabled      port
lsgroup                 Enabled      port
mac-limit               Enabled      port
pagp-flap               Enabled      port
port-mode-failure       Enabled      port
secure-violation        Enabled      port/vlan
security-violation      Enabled      port
sfp-config-mismatch     Enabled      port
small-frame             Enabled      port
storm-control           Enabled      port
udld                    Enabled      port
vmps                    Enabled      port


As shown, the command lists all supported Errdisable reasons.  For our example, let's assume we want to disable the inline-power Errdisable feature.

To achieve this, we simply use the following command:

2960G(config)# errdisable recovery cause all

And verify that Errdisable has been disabled for the feature:

2960G# show errdisable detect
ErrDisable Reason      Detection    Mode
-----------------      ---------    ----
bpduguard               Enabled      port
channel-misconfig       Enabled      port
community-limit         Enabled      port
dhcp-rate-limit         Enabled      port
dtp-flap                Enabled      port
gbic-invalid            Enabled      port
inline-power            Disabled     port
invalid-policy          Enabled      port
link-flap               Enabled      port
loopback                Enabled      port
lsgroup                 Enabled      port
mac-limit               Enabled      port
pagp-flap               Enabled      port
port-mode-failure       Enabled      port
psecure-violation       Enabled      port/vlan
security-violation      Enabled      port
sfp-config-mismatch     Enabled      port
small-frame             Enabled      port
storm-control           Enabled      port
udld                    Enabled      port
vmps                    Enabled      port

Overall, the Errdisable feature is an extremely useful tool if configured and monitored correctly. Take the necessary time to play around with the supported options of your Cisco Catalyst switch and fine-tune it to suit your network needs.
